iCMS.pollerd

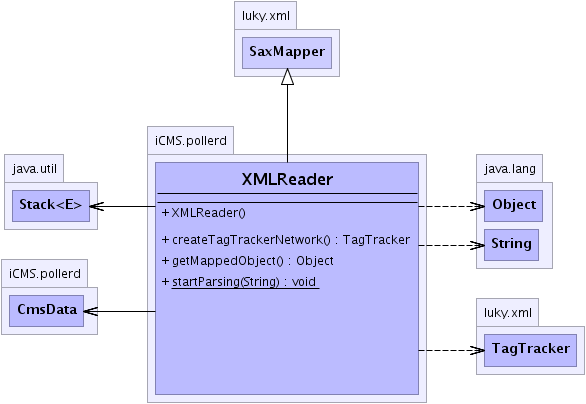

Class XMLReader

java.lang.Object
  org.xml.sax.helpers.DefaultHandler
      luky.xml.SaxMapper
          iCMS.pollerd.XMLReader

All Implemented Interfaces:

ContentHandler, DTDHandler, EntityResolver, ErrorHandler

public class XMLReader
extends SaxMapper

This class reads an xml file with the cms configuration, it tries to stay compliant with the old cms-basic format but there are some restrictions, First of all this reader is much more strict, thus files should start as a proper xml file, not as a generated luky script. Second the & symbol can not be used, use escape characters or just write and. Third the include tag is no longer supported, copy all data in one file. Also are applications should to suply a symbolic name and columns (or locations) must suply a name.
Nodes are no longer logged under a name, the hostname replaces it, the old style is still compatible
The biggest change is the propagation of application statuses within a nodetype. These are no longer supported as seperate tag, but as attribute of the application tag. (where they belong), consider using probe instead of status (depricated) as it is actually a status probe, and not a status
The folowing tags are supported:

/cms/mibpath
/cms/mib
/cms/logging
/cms/snmpconfig
/cms/nodetypes/nodetype
/cms/nodetypes/nodetype/mib
/cms/nodetypes/nodetype/status
/cms/nodetypes/nodetype/probe
/cms/nodetypes/nodetype/status/snmp
/cms/nodetypes/nodetype/probe/snmp
/cms/nodetypes/nodetype/status/ping
/cms/nodetypes/nodetype/probe/ping
/cms/nodetypes/nodetype/status/fixed
/cms/nodetypes/nodetype/probe/fixed
/cms/nodetypes/nodetype/applicationtype
/cms/nodetypes/nodetype/application
/cms/applicationtypes/applicationtype
/cms/applicationtypes/application
/cms/applicationtypes/applicationtype/mib
/cms/applicationtypes/application/mib
/cms/applicationtypes/applicationtype/status
/cms/applicationtypes/application/descr
/cms/applicationtypes/application/probe
/cms/applicationtypes/applicationtype/status/snmp
/cms/applicationtypes/application/probe/snmp
/cms/applicationtypes/applicationtype/status/ping
/cms/applicationtypes/application/probe/ping
/cms/applicationtypes/applicationtype/status/fixed
/cms/applicationtypes/application/probe/fixed
/cms/column
/cms/location
/cms/location/descr
/cms/column/nodegroup
/cms/location/nodegroup
/cms/location/nodegroup/desc
/cms/column/nodegroup/node
/cms/location/nodegroup/node
/cms/location/nodegroup/node/desc

Revision Changes :

• 1.0.0 - initial version
• 2.0.0 - Release for GPL as iCMS
• 2.0.1 - Added parental awareness
• 2.0.2 - Fixed bug when setting info in non existing probe
• 2.0.3 - A probe in a nodetype can now be set no propagation

Version:

2.0.3

Author:

Chris Lukassen

Constructor Summary

XMLReader()

Method Summary

TagTracker	createTagTrackerNetwork()
Object	getMappedObject()
static void	startParsing(String fileName)

Methods inherited from class luky.xml.SaxMapper

characters, endElement, fromXML, fromXML, fromXML, startElement

Methods inherited from class org.xml.sax.helpers.DefaultHandler

endDocument, endPrefixMapping, error, fatalError, ignorableWhitespace, notationDecl, processingInstruction, resolveEntity, setDocumentLocator, skippedEntity, startDocument, startPrefixMapping, unparsedEntityDecl, warning

Methods inherited from class java.lang.Object

clone, equals, finalize, getClass, hashCode, notify, notifyAll, toString, wait, wait, wait

Constructor Detail

XMLReader

public XMLReader()

Method Detail

getMappedObject

public Object getMappedObject()

Specified by:

getMappedObject in class SaxMapper

createTagTrackerNetwork

public TagTracker createTagTrackerNetwork()

Specified by:

createTagTrackerNetwork in class SaxMapper

startParsing

public static void startParsing(String fileName)
